CTM100 Range Summation CTs

Description

DIN rail mounted summation current transformers in compact sizes, available in 5A or 1A input and 1%, 0.5% or 0.2% accuracy.



Application

For summing of several independent loads on different or some systems.

PDF

Features
  • DIN rail mounted
  • Protected terminals
  • Up to 9 inputs (equal ratio)
  • Unequal ratios available on request
Technical Specification
  • Conforms to EN 60044-1 / EN 61869-2 and IEC 61869-2
  • Rated system voltage 0.72/3kW
  • Ambient temperature -5ºC to +50ºC
  • Continuos current 1.2 x rated current

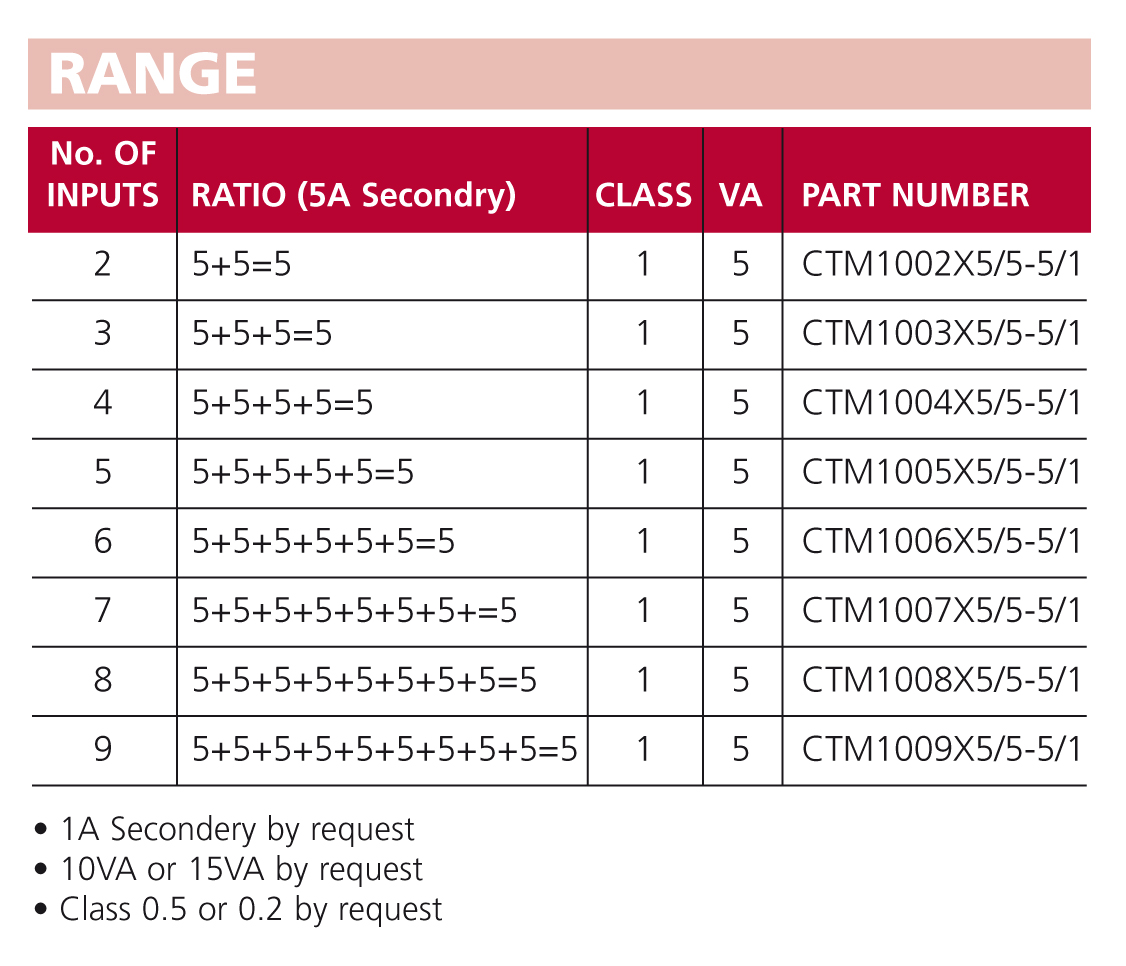

Range
Dimensions
