Series 162 Current Transformers

162 series moulded case current transformer



Description

A range of compact moulded case current transformers suitable for primary currents from 30A to 250A with built in terminal covers.

Application

For transforming various primary currents into 1A or 5A secondary using 20x10mm busbars or 20mm diameter cables.

PDF

Features

Built in sealable terminal covers.
Mounting feet and busbar screws supplied.
Narrow width - 60mm.
Din rail clip supplied with CT162 only.

TECHNICAL SPECIFICATION

Conforms to IEC185, BS 7626, BSEN 60044-1,
IEC 60044-1, BSEN 61869-2 and IEC 61892-2.
Rated system voltage 0.72/3kV.
Ambient temperature range -30°C to 40°C.
Continuous current, 1.2 x rated current.

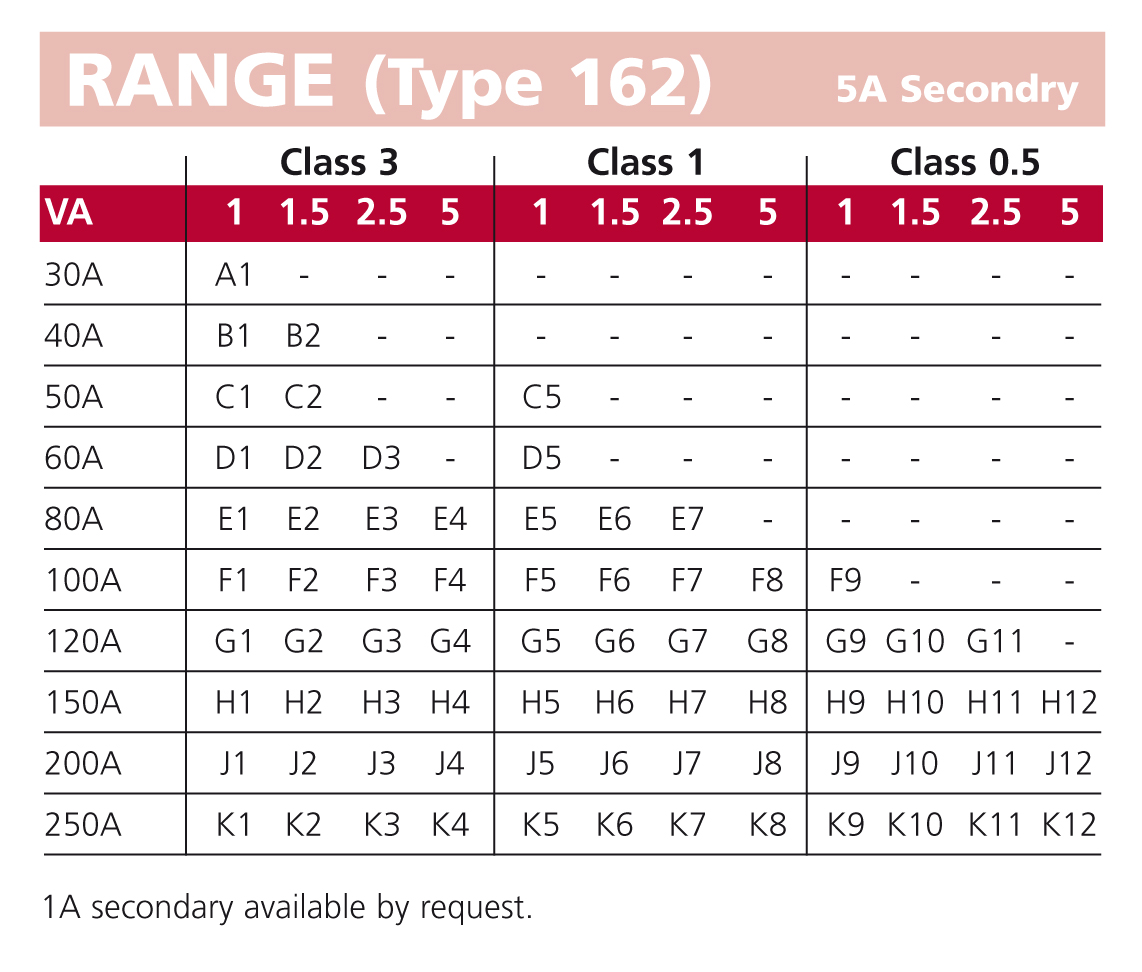

RANGE (Type 162) 5A Secondry
162 range
RANGE (Type 162D) 5A Secondry

162D range



DIMENSIONS (mm)

162 162D dimension diagram
