Series 164 Current Transformers

164 series moulded case current transformer



Description

A range of compact moulded case current transformers suitable for primary currents from 100A to 800A with built in terminal covers.

Application

For transforming various primary currents into 1A or 5A secondary using 40x10mm busbars, 30x10mm busbars or 28mm diameter cables.

PDF

Features
  • Built in sealable terminal covers.
  • Mounting feet and busbar screws supplied.
  • Narrow width - 60mm.
  • Din rail clip supplied with CT164 only.
TECHNICAL SPECIFICATION
  • Conforms to IEC185, BS 7626, BSEN 60044-1, IEC 60044-1, BSEN 61869-2 and IEC 61892-2.
  • Rated system voltage 0.72/3kV.
  • Ambient temperature range -30°C to 40°C.
  • Continuous current, 1.2 x rated current.

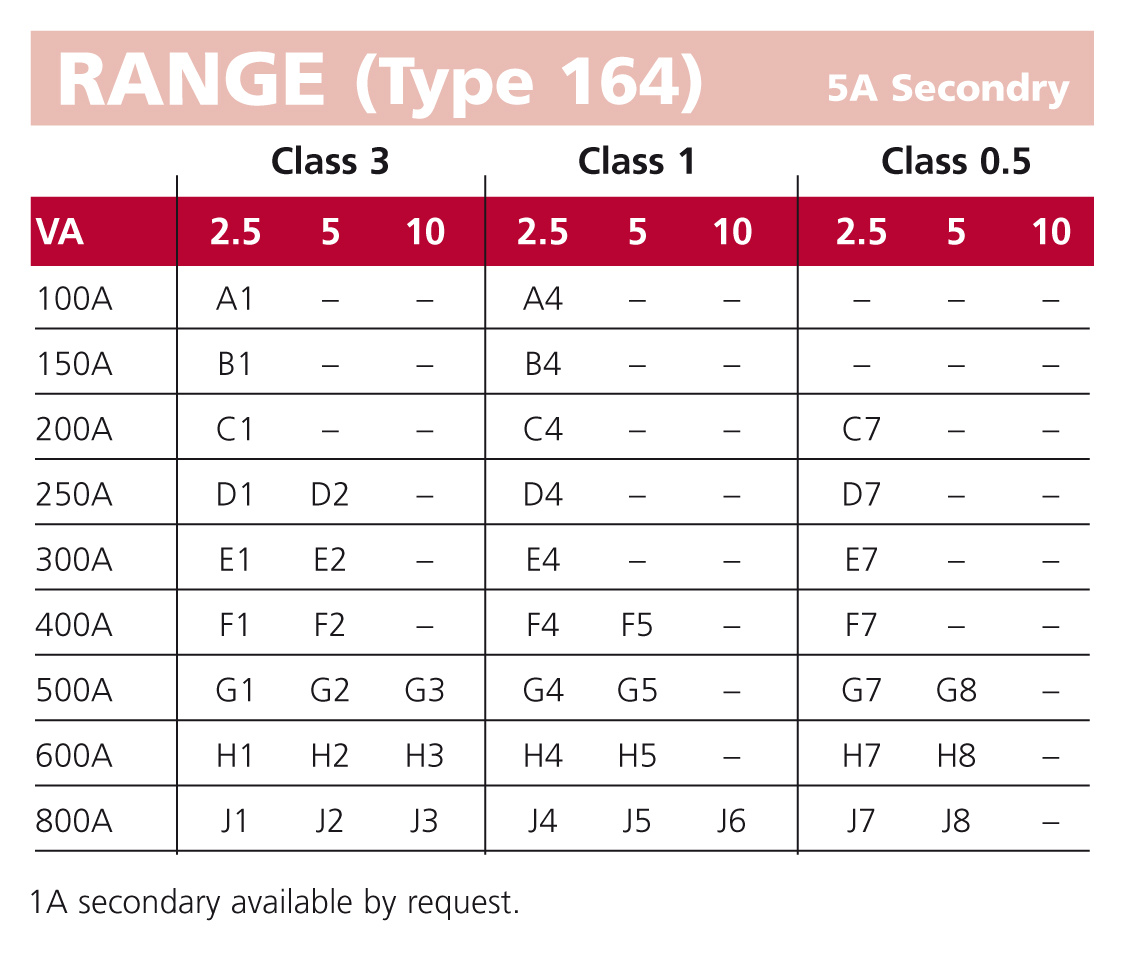

RANGE (Type 164) 5A Secondry
164 range
RANGE (Type 164D) 5A Secondry

164D range



DIMENSIONS (mm)

164 164D dimensions
