Series 18 Current Transformers

18 series moulded case current transformer

Description

A range of compact low cost moulded case current transformers suitable for primary currents from 400A to 1600A with built in sealable terminal covers.



Application

For transforming various primary currents into 5A or 1A standard secondary using up to 60x15mm or 50x30mm busbars or cables up to 45mm diameter.

PDF

Features
  • A range of compact low cost moulded case current transformers suitable for primary currents from 400A to 1600A with built in sealable terminal covers.
  • Built in sealable terminal covers
  • Mounting feet supplied
  • Narrow width - 85mm
  • Wide range of primary current
Technical Specification
  • Conforms to IEC 185, BS 7626, BSEN 60044-1 and IEC 60044-1
  • Rated system voltage 0.72 / 3kV
  • Continuous Current 1.2 x rated current
  • Ambient temperature range -30ºC to 85ºC
Range

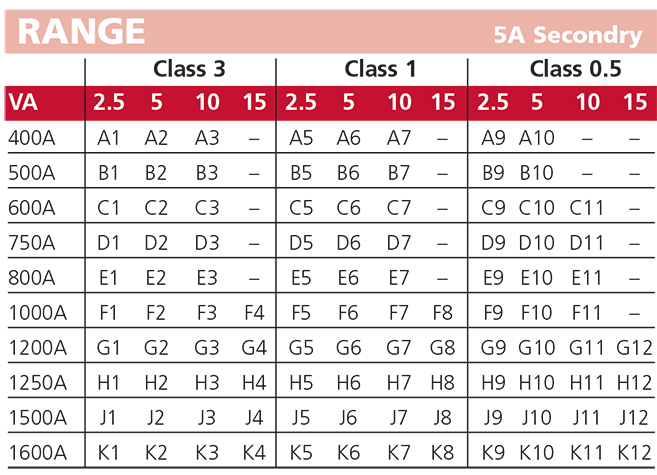

18 series table

1A Secondary available by request.

Order example: A moulded case current transformer type 18, with 5A secondary and 1000A primary 5VA class 1 is part number 18-5-F6



Dimensions

dimensions
