Series 19 Current Transformers

19 series moulded case current transformer

Description

A range of compact low cost moulded case current transformers suitable for primary currents from 400A to 2000A with built in sealable terminal covers.



Application

For transforming various primary currents into 5A or 1A standard secondary using upto 60x30mm busbars or cables upto 45mm diameter



PDF

Features
  • Built in sealable terminal covers.
  • Mounting Feet supplied.
  • Narrow width - 90mm.
  • Wide range of primary current.
Technical Specification
  • Conforms to IEC 185, BS 7626, BSEN 60044-1 and IEC 60044-1
  • Rated system voltage 0.72 / 3kV.
  • Ambient temperature range -30ºC to 85ºC.
  • Continuous current 1.2 x rated current.
Range (Type 196)

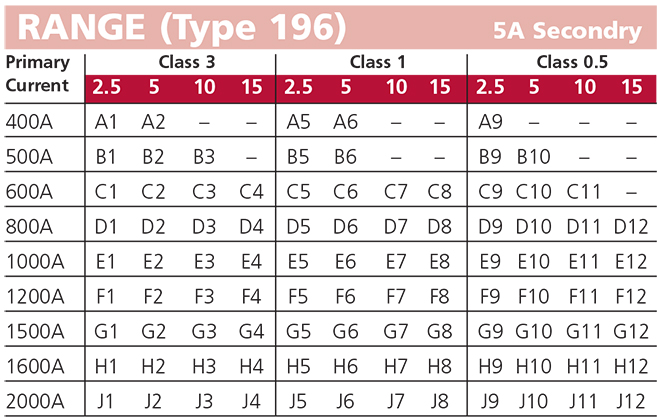

19series table

1A secondary available by request.

Class 0.2S also available by request.

ORDER EXAMPLE: A 19 series moulded case current transformer, with 5A secondary and 1000A primary 5VA class 1 is part number 196-5-E6
