Micro 19 Split Core Current Transformers



microsplitcore

Description

The "Micro 19" range of split core current transformers are amongst the smallest available and can be supplied with choice of screw clamp terminals, flying leads and unique plug-in short circuit link.



Application

For installation into existing networks in complete safety. The CT will not operate until the plug-in link is removed.

PDF

SPECIFICATIONS

• Conforms to  BS EN 60044-1/IEC 60044-1 andIEC 61869-2
• Rated system voltage 0.72/3kV
• Ambient temperature range -5ºC to +50ºC
• Class 1 (phase angle < 2 degrees for 100A at 50% rated current)
• 5A and 0.333V secondary output
• VA rating: 100A/125A = 0.5VA, 150A/200A = 1.5VA, 250A = 2VA

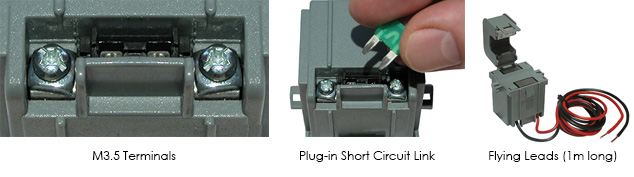

Options
• M3.5 screw clamp secondary terminals
• Plug-in short circuit link
• 1 metre flying leads

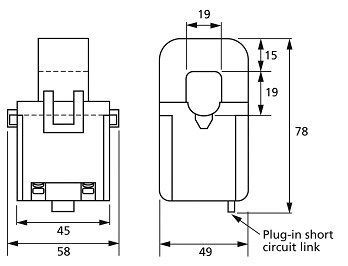

DIMENSIONS (mm)
micro split core dims
OPTIONS

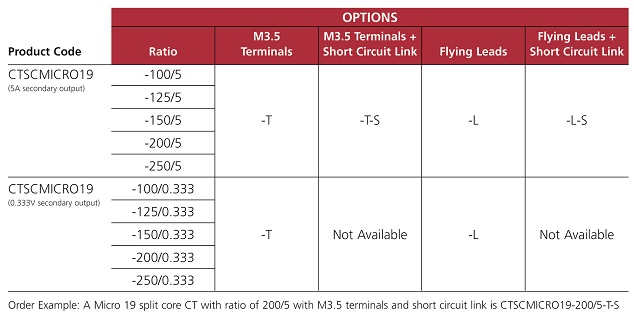

RANGE
micro19 table
