Series 80 Current Transformers

80 series split core current transformer

Description

A range of moulded case Split core current transformers with in-built terminal covers. Primary ranges available up to 5000A with 5A secondary as standard.

Application

The Hobut range of Split-core current transformers has been designed to meet the growing demand for installation into existing networks. The split-core allows installation without disconnecting cables or busbar circuits. The products are ideal for retro-fitting and are therefore popular in the Energy Management and Power Factor Correction Industries

PDF

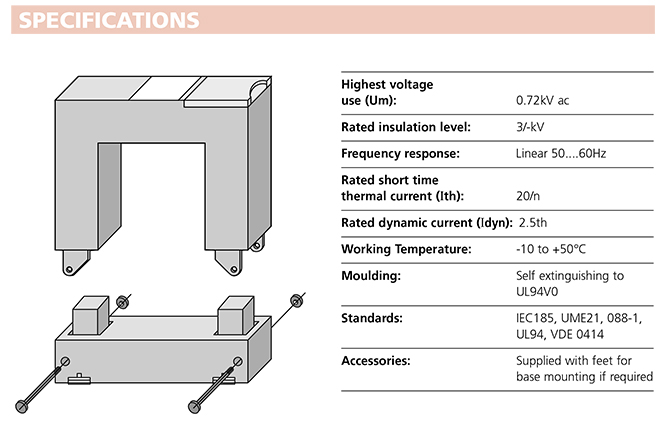

Technical Specification
Splitcore tech spec

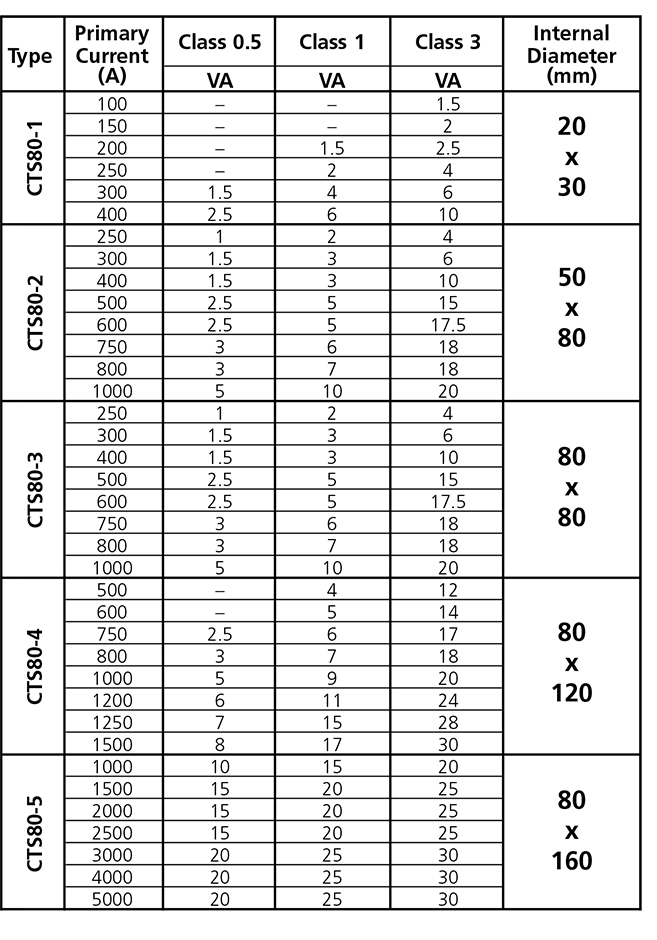

Range
Splitcore range
Design

The 80 series Split-Core Current Transformers are of moulded case construction, supplied complete with in-built terminal cover.

Accuracy / Burden

Each Split-Core Current Transformer is supplied for use with various class and accuracy burdens. For example, Type CTS80-1,400/5 is suitable for:
0.5% accuracy up to 2.5VA
1% accuracy up to 6VA
3% accuracy up to 10VA

Order Example

A split-core Transformer Type CTS80-1 with a ratio of 400/5 is:
CTS80-1, 400/5. There is no reason to specify accuracy or VA on your order for reasons outlined above.

Dimensions

Splitcore dimensions text

Splitcore dimensions dia
