Digital Panel Meters

Digital panel meter

Description

96 x 48mm digital panel meters with 3.5 digit, 14.2mm high 7 segment LED's. The products offer a wide range of AC or DC input parameters. Essentially there are 3 main product group types:- AC Volts, Amps, Milliamps, DC Volts, Amps, Milliamps, Millivolts, Frequency.

Application

With the combination of mA input M300-AD1 and the M100 series Power transducers, parameters such as kW, kV, Ar etc can be measured and displayed. Customer adjustment of botjh "ZERO" and "SPAN" is permissible via potentiometers, accessible from the rear of the product.

PDF IMAGE

Meter Rear View
The 96 x 48mm case is designed for fast and simple installation, using the corner brackets for panel mounting. The M3.5 terminals allow the use of traditional termination and no extra terminal kits or soldering to PCB'S are required.

DP-Digitalback

AC Inputs

Both AC Voltage and Current circuits are average sensing RMS calibrated. The input signal is transformed to a low level of AC. The transformer secondary voltage is fed to a precision active rectfier. The resulting DC signal is presented to an analogue to digital A/D The A/D converter uses the dual converter slope integration method of conversion. The resulting digital information is used to drive the LED display.

DC Inputs

DC Voltage and current inputs are fed into high stability ranging components. The ranging components reduce the input signal to a 2 volt level. If the input is below 2 Volts and amplifier is employed to derive 2 Volts. The 2 Volt signal is then presented to the A/D converter which provides the digital information to drive the LED display.

Frequency Inputs

A Frequency to Voltage F/V converter is used to convert the output signal to a DC signal. The resulting DC signal is fed into the A/D converter and the same process as in the AC and DC circuits previously described takes place.

DP-Digfreq

General Specifications
INPUT TYPE RANGE
AC Volts M300-VAD 0..600V
DC Volts M300-VD1 ± 50/60/75/100/150mV
DC Volts M300-VD2 ± 50mV...1999mV
DC Volts M300-VD3 ± 2V ...199.9V
DC Volts M300-VD4 ± 200V ...600V
AC Amps M300-AAD 1 or 5 AC (0.2 to 10A)
DC Amps M300-AD1 ± 1/5/10/20
DC Amps M300-AD2 ± 100µA...199.9µa
DC Amps M300-AD4 4/20mA
Frequency M300-HZD 35Hz...199.99Hz
Performance
IMPEDANCE
M300-VAD 10K Ohm/V
M300-VD1/2 > 100K Ohm
M300-VD3/4 10K Ohm/V

BURDEN
M300-AAD < 2VA
M300-AD1/2/3/4 20mV drop

OVERLOAD
Current 4 x continuous
  25 x 1 second
Voltage 1.5 x continuous
  4 x 1 second
Accuracy ± 0.05% of reading ± 1 digits
Resolution 0.05%
Linearity ± 1 digit roll over error ± 2 digits
Conversion Dual slope integration
CMR AC 50dB 50 to 60Hz
  DC 25 1K Ohm source unbalanced
Environmental & Insulation
Working Temperature 0-60 deg C
Function Temperature -25 to +70 deg C
Storage Temperature -55 to 85 deg C
Temperature Coefficient 0.01% per deg C
Relative Humidity 0-95% non-condensing
Warm up time 1 min
Shock 30g in 3 planes
Test Voltage 4kV RMS 50Hz 1 min
Auxiliary Power Supply
AC Voltage 115/230/400 Volts (±25%)
  45 to 65 Hz Burden < 2VA
DC Voltage 24/48/110 Volts (± 20%)
  Galvanic isolation. Burden < 3W
Display
Digits 1999 Full scale
Size 14.2mm (0.56") 7 segment red
Decimal Point Internally selectable
Overrange indication Displays "1" or "-1"
Update response time < 1 second
Polarity Automatic with (-) indicating negative inputs
Enclosure
DIN case Dimensions 96 x 48 x 98
Material Black Polycarbonate Complying with UL94VO
Terminals Screw type for 2 x 0.5-3.5mm
Weight 0.4kg
Enclosure code IP 54 NEM A 12 Optional IP65 NEM A4

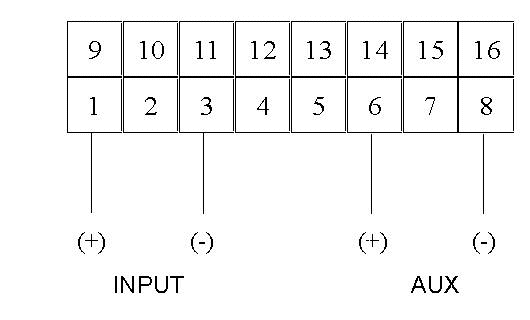

Wiring Diagram

a) All inputs (AC or DC) are connected via terminals 1 & 3
b) All Auxiliary supplies (AC or DC) are connected via terminals 6 & 8
c) Access to the "ZERO" & "SPAN" adjustment. Remove terminal
blanks in position 9 & 10. ZERO = 10,SPAN = 9
d) Optional externally selectable decimal point. 16=common, 15=1.999
14 = 19.99, 13=199.9 Link 16 as required.

Dimensions

DP-dig dim
